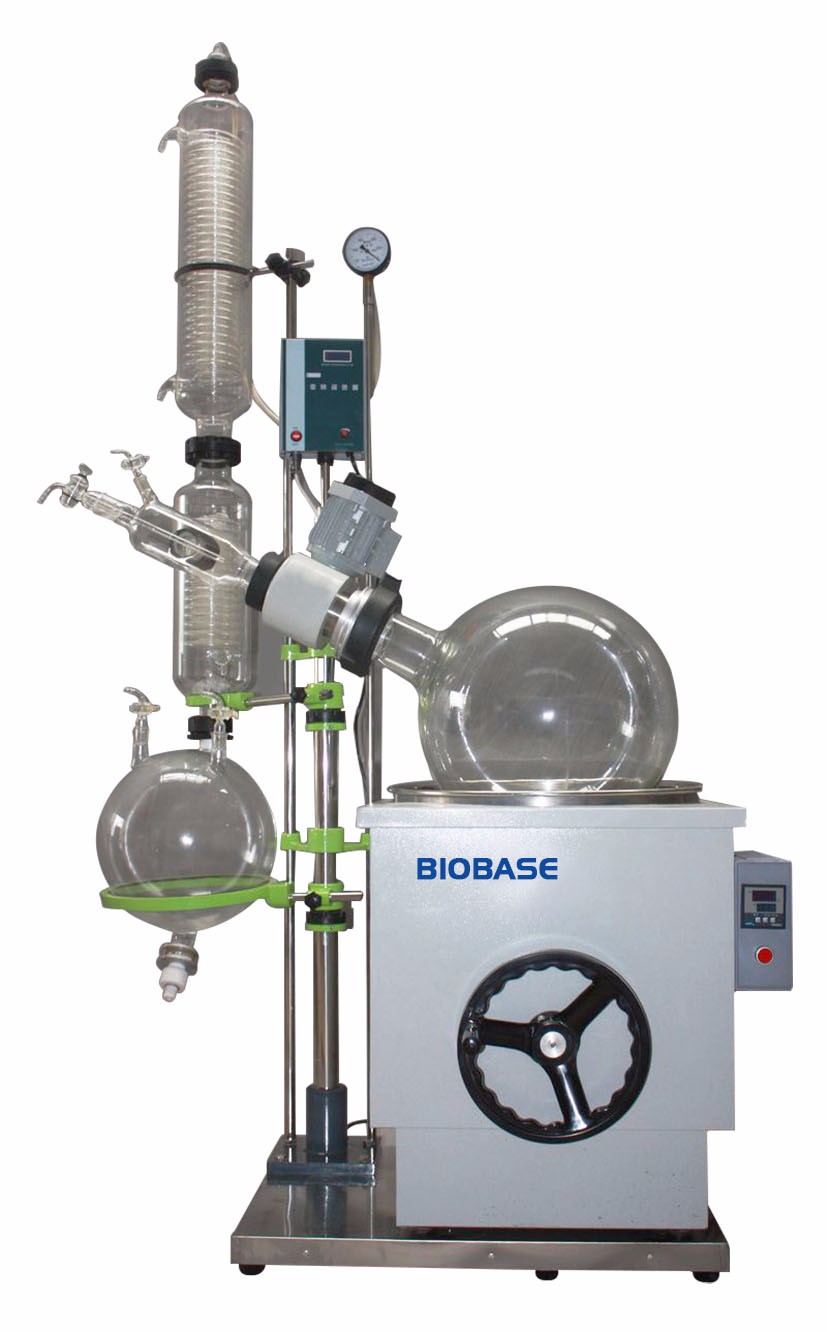

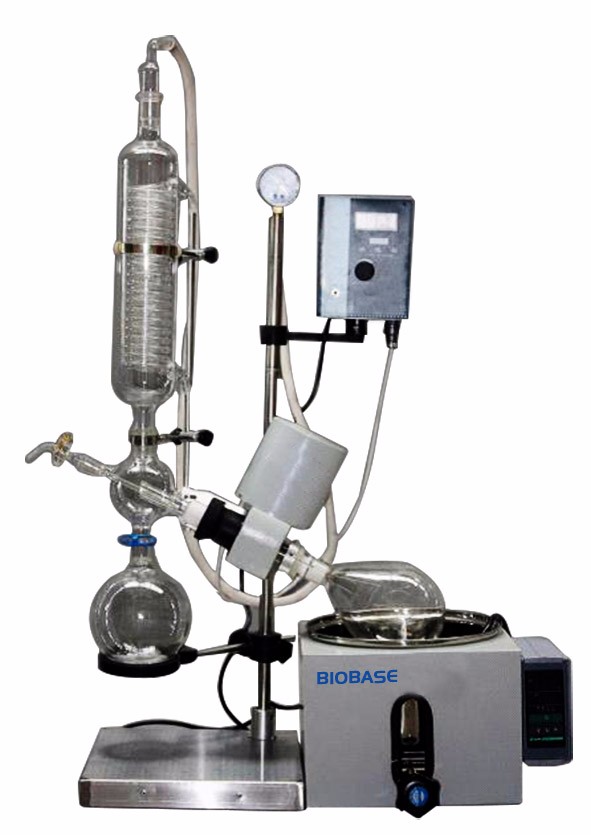

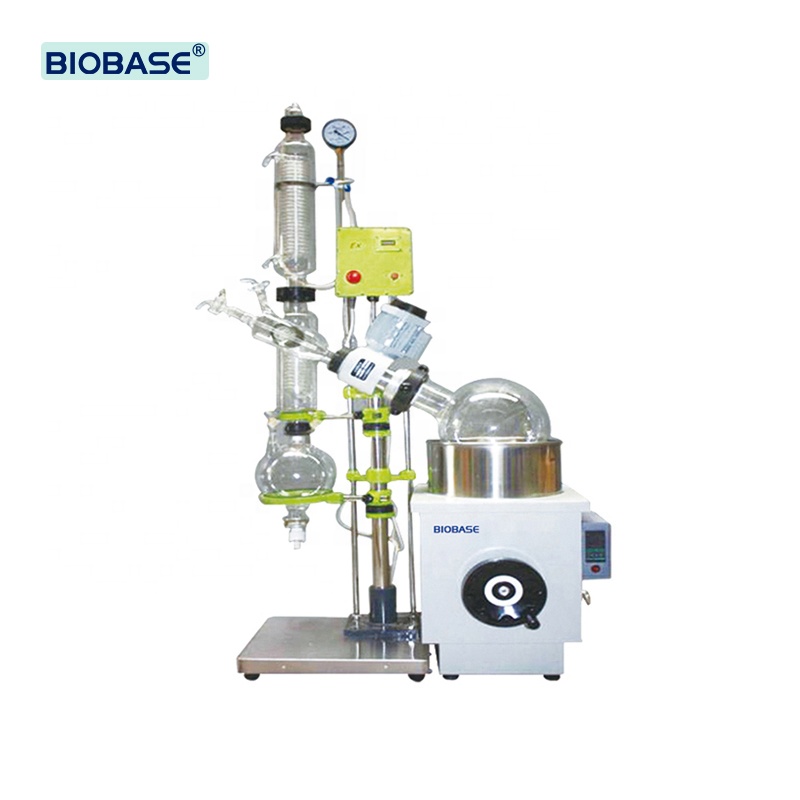

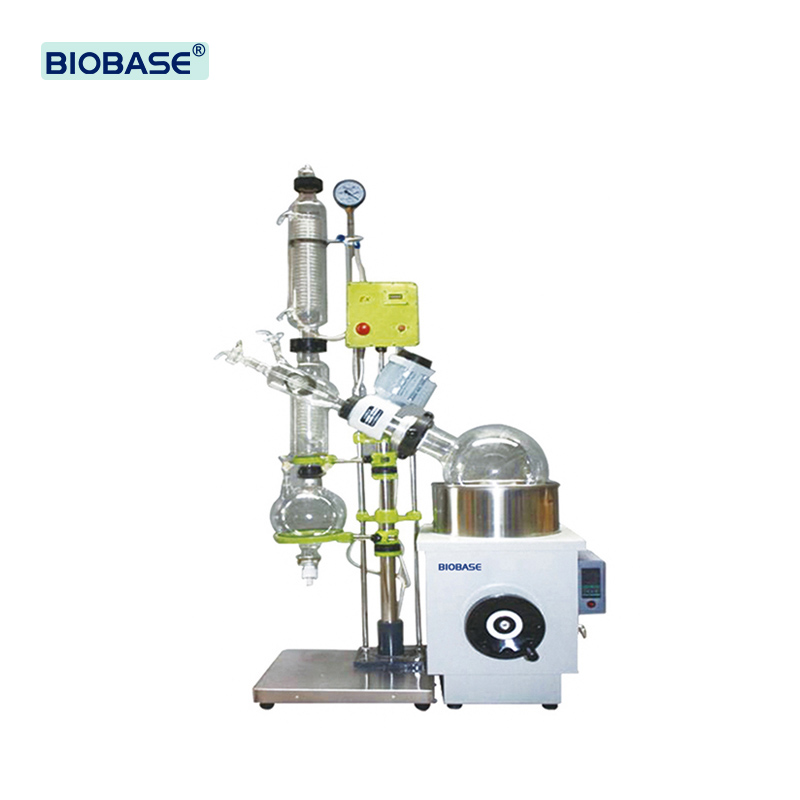

| Model | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5003 | |
|---|---|---|---|---|---|---|---|
| Rotary Bottle | 1L 24# (standard mouth) | 3L (flange φ50) | 5L (flange φ50) | 10L (flange φ95) | 20L (flange φ95) | 50L (flange φ125) | |
| Collecting Bottle | 1L 35# (standard mouth) | 2L 35# (ball mill mouth) | 3L 35# (ball mill mouth) | 5L (flange φ50) | 10L (flange φ60) | 20L (flange φ60) | |
| Condenser | Vertical φ85*460mm, 29# | Vertical φ100*510mm | Vertical φ100*590mm | Vertical three backflow φ120*640mm (main), φ135*470mm (sub) | Vertical three backflow φ130*680mm (main), φ160*530mm (sub) | Vertical three backflow φ160*840mm (main), φ160*530mm (sub) | |
| Charging Valve | 19# (standard size) | 34# (standard size) | 40# (standard size) | ||||
| Rotary Speed | 0-120 rpm | 0-110 rpm | |||||
| Vacuum | 0.098 Mpa | ||||||
| Temp. Range | RT ~ 400°C | ||||||
| Temp. Accuracy | ±1°C | ||||||
| Stroke Height | 120mm | 180mm | |||||
| Rotary Power | 30W | 40W | 120W | 180W | |||
| Heating Power | 1.5KW | 2KW | 3KW | 5KW | 8KW | ||
| Shelf Material | Stainless steel | Coating anticorrosive | |||||
| Chamber Material | SS 250*140mm | SS 255*170mm | SS 280*170mm | SS 550*320mm | SS 450*250mm | SS 350*220mm | |
| Plate Size | 280*330mm | 350*330mm | 534*504mm | 474*474mm | 550*320mm | ||
| Power Supply | AC220/110V±10%, 50/60Hz | AC220V±10%, 50Hz | AC380V/220V±10%, 50Hz | ||||
| External Size (mm) | 700*440*885 | 660*330*970 | 700*335*1009 | 970*480*1950 | 1170*540*2200 | 1520*620*2470 | |
| Package Size (mm) | 590*460*460 | 1000*460*450 | 1040*620*410 | 1350*350*400; 1280*570*660 | 1370*700*680; 700*680*740 | 1450*390*440; 1150*840*660; 790*730*790 | |
| Gross Weight | 21 Kg | 38 Kg | 38 Kg | 100 Kg | 123 Kg | 170 Kg | |
| Standard Accessory | 1L Rotary bottle*1, 1L Collecting bottle*1 | 3L Rotary bottle*1, 2L Collecting bottle*1 | 5L Rotary bottle*1, 3L Collecting bottle*1 | 10L Rotary bottle*1, 5L Collecting bottle*1 | 20L Rotary bottle*1, 10L Collecting bottle*1 | 50L Rotary bottle*1, 20L Collecting bottle*1 | |
| Optional Accessory | Transparent bath cover, Explosion-proof transducer | Explosion-proof transducer, Explosion-proof motor EX40W | Explosion-proof transducer, Double collection bottle, Auto-lifting, Explosion-proof motor EX120W | ||||
